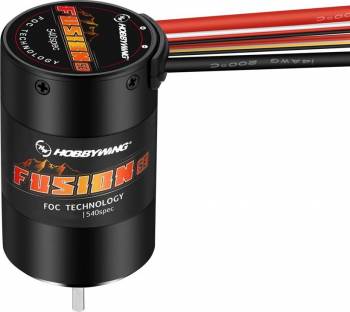

HOBBYWING-QuicRun Fusion SE 1200KV for Crawler 540 Spec
HOBBYWING-QuicRun Fusion SE 1200KV for Crawler 540 Spec
Regular price
$159.99 CAD
Regular price
Sale price
$159.99 CAD
HBW30404318
QuicRun Fusion SE 1800kv Brushless Motor 540 Spec w/ESC 40A
By HOBBYWING
2-in-1 System | a built-in ESC brushless motor
What's in the box
- 1x 2 in1 System (ESC and Motor)
- 1x Decal and Manual
- 1x Heatsink kit, double-sided tape, and zip ties.
| Product Name | QuicRun Fusion SE |
| P/N | 1200KV-30404318 / 1800KV-30404317 |
| Application | 1/10th Rock Crawler, Brushless Sensored system |
| Waterproof | Yes |
| Cont./Peak Current | 40A |
| BEC output | 2-3S Lipo/6-9 Cell NiMH |
| Motor KV | 1200KV / 1800KV |
| Diameter / Length of Motor | 36mm / 58.1mm |
| Shaft dia./ exposed shaft length | 3.175mm / 16.5mm |
| Motor Poles | 4 |
| Input Wires | Red-14AWG-200mm*1 / Black-14AWG-200mm*1 |
| Input connectors | XT60 |
| (Note: All the wire length above is the original length, not the length you see from the outside.) | |
| ESC Programing via | LED Program Box |
| Program Port | Independent programming interface(switch position) |
| Firmware Upgrade | Not supported |
| Size / Weight | 36X58.1mm / 201g (including wires&connectors) |
DOWNLOAD:
-
User Manual > Quicrun Fusion SE
