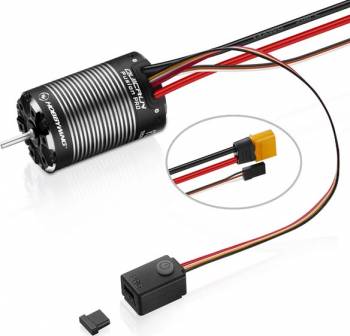

HOBBYWING-Quicrun Fusion Pro 2in1 FOC Brushless 2300kv Motor/ESC
HOBBYWING-Quicrun Fusion Pro 2in1 FOC Brushless 2300kv Motor/ESC
Regular price
$229.00 CAD
Regular price
Sale price
$229.00 CAD
HBW30120402
Quicrun Fusion Pro 2in1 FOC Brushless 2300kv Motor/ESC
By HOBBYWING
What's in the box
- 1x 2 in1 System (ESC and Motor)
- 1x Decal and Manual
- 1x Heatsink kit, double-sided tape, and zip ties.
| Product Name | FUSION PRO |
| MSRP | $212 |
| MAP | $149.99 |
| p/n |
30120402
|
| Motor KV | 2300KV |
| Cont./Peak Current | 60A/200A |
| Input Voltage | 2-3S Lipo/6-9 Cell NiMH |
| BEC Output | Switch Mode:6V/7.4V，6A |
| Input wires | Red-14AWG-330mm*1 / Black-14AWG-330mm*1 |
| Input connector | XT60 (factory installed) |
| Programming Port | Independent programming interface(switch position |
| Size / Weight | 37mm x 58mm / 209g (w/ wires+plug) |
| Shaft dim | 3.175mm / 16mm |
| Motor Pole | 4 |
| Programmer | LED Programming card (Sold separately) |
DOWNLOAD: Specification & Brochure
- Product Brochure (pdf)
- Spec Comparison(pdf)
